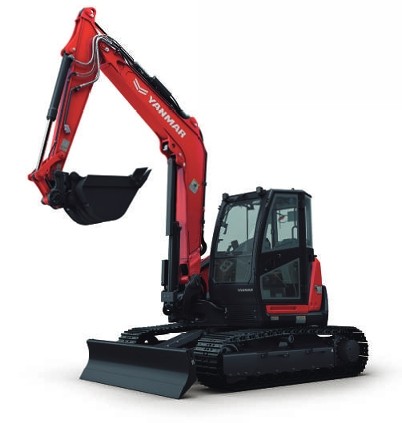

SV100-2B
Offers the performance of a large excavator while enjoying the benefits of mini excavator
Reliable YANMAR engine designed to deliver powerful output and fuel efficiency
YANMAR Engine
Equipped with powerful and highly fuel efficient engine. 4TNV98T-Z benefits from the latest electronically controlled direct injection and the Exhaust Gas Recirculation (EGR) technologies.
Model 4TNV98T-ZSBV2 Output (Gross) 54.1kW
Isochronous Control
The ECU controller helps to maintain constant engine speed even in high loads. Enables operator to work stress-free.
Auto Deceleration
Automatically lowers the engine speed to idle when the machine stops for more than 4 seconds. Reverts to the original speed, once the operation lever is moved.
Eco Mode
Lower fuel consumption by reducing the engine speed to 90% from maximum speed.
The Exhaust Gas Recirculation (EGR)
It partially cools the exhaust gas, and by mixing it with suction air and circulating it within the cylinder, lowers the burning temperature inside the cylinder and decreases emission (NOx).
Enhanced safety
ROPS and OPG TOP Guard (Level I) Cabin
The protective structure that meets ISO standards, minimises the damage in case of accident.
Emergency Engine Stop Switch
In case of emergency, the engine can be shut down easily with emergency switch.
Back Mirror
Standard back mirror provides sufficient visibility. Ensures safer operation on the job sites.
Comfortable operator space
1. Large LCD Monitor with LED Backlight
Easy-to-read display showing operating status and maintenance information.
2. Dial Accelerator
Fingertip control dial easy to change the engine speed.
3. Ergonomically Designed Controls
Ergonomically arranged operating controls and switches are within the reach of one hand.
4. Suspension and Reclining Seat
A suspension and adjustable seat allow the operator to find their perfect working position while reducing shocks and vibrations.
5. External Power Outlet (12V)
The 12V power socket can be used for charging your cell phone and other devices.

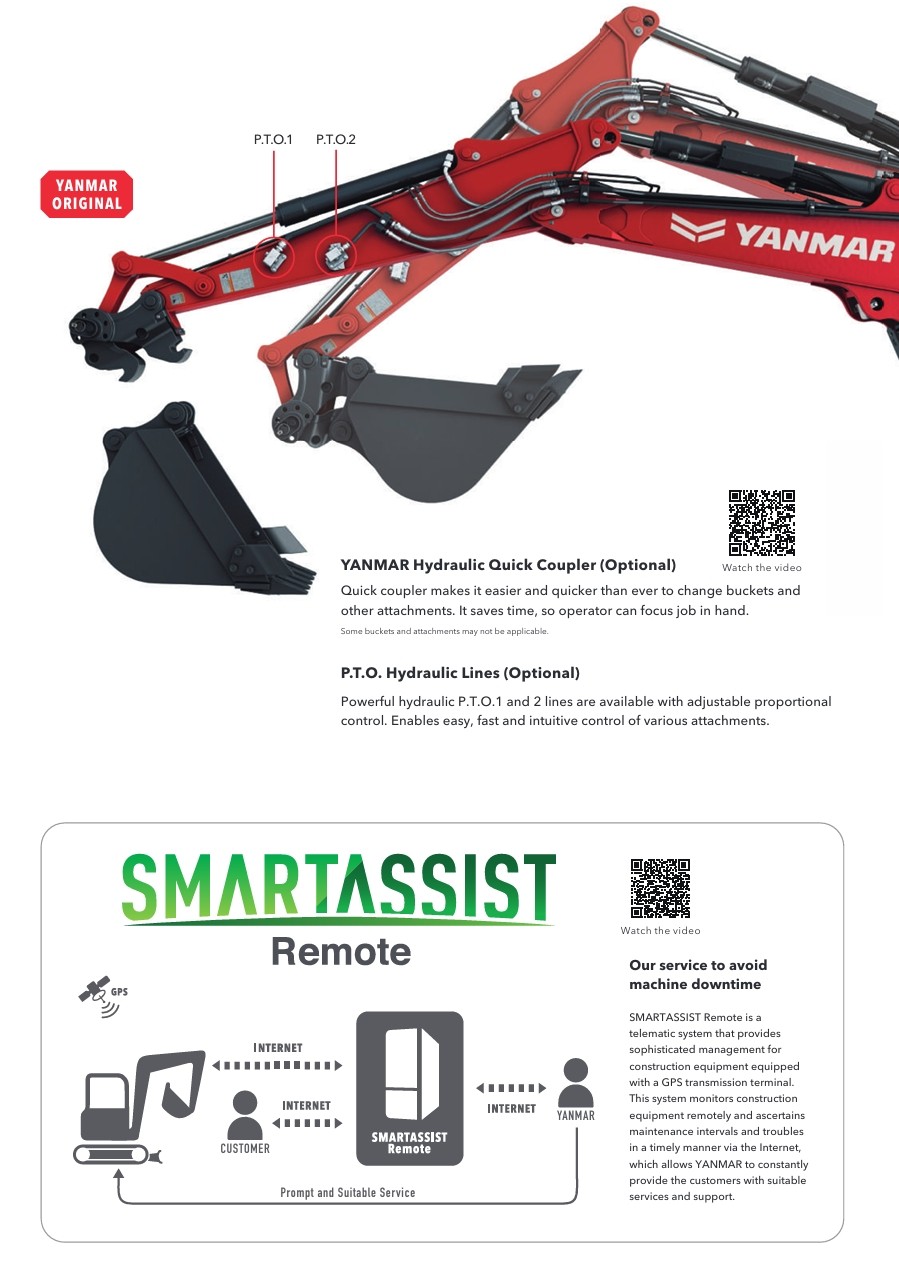

6. P.T.O. Switch and Flow Adjustment
Hydraulic P.T.O. lines can be controlled with the tip of your fingers. Ensures precise operation of attachments.

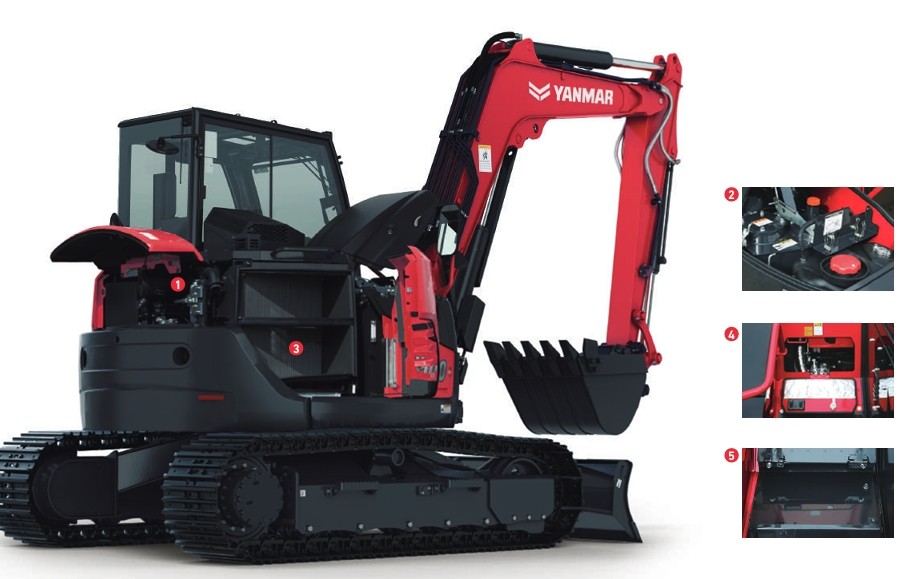

Easy maintenance
1. Engine, Air Cleaner
Wide opening of engine bonnet makes inspection and maintenance of the engine and air cleaner simple.
2. Hydraulic Oil Tank, Fuel Tank, Grease Pump Holder
Lockable right upper hand side bonnet provides easy access and security.
3. Radiator, Battery
No tools required to open the righthand side bonnet, making battery inspection and cleaning the radiator an easy task.
4. Fan Belt, Air Conditioner Belt
Large inspection window for easy access.
5. Tool Box
Secure place to keep tools.
